USA type 100A 50mV DC brass Electric current Shunt Resistors For Ammeter Voltmeter

FOB Reference Price:Get Latest Price
US $3-6 / Piece | 1 Piece/Pieces 100A 50mV Shunt Resistors (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Month 100A 50mV Shunt Resistors
Port:
Shanghai / Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
NQQK
Model Number:
NKTS-3
Type:
Fixed Resistor
Technology:
Metal Alloy
Package Type:
Surface Mount
Resistance:
0.01 -100K
Resistance Tolerance:
1% 2% 5% 10%
Rated Power:
0.1-5W
Temperature Coefficient:
100ppm
Operating Temperature:
-40°C ~+60°C
Name:
100A 50mV Shunt Resistors
Color:
Black

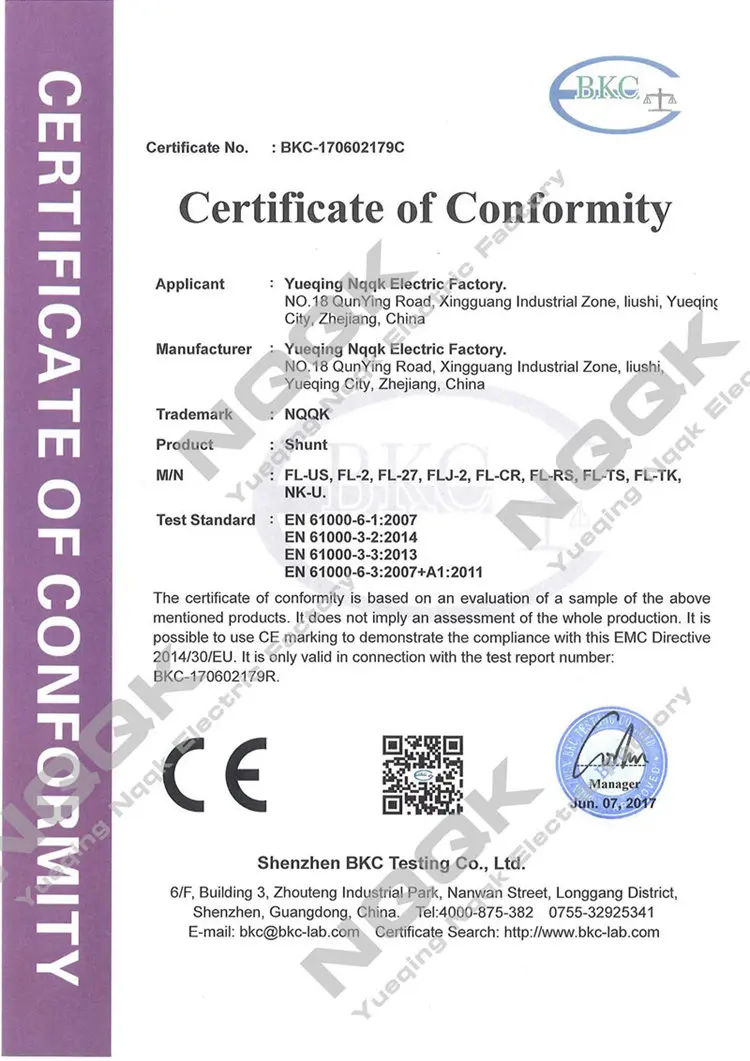

Certificates:
CE
Shipping Method:
DHL & OTHER
Pack:
carton
Material:
Copper with nickel plated
Accuracy class:
0.5
Voltage drop:
50mv/60mv
Resistor:
10 Ohm 100 Watt Resistor
web:
www.nqqkelc.com
Packaging & Delivery
Packaging Details
Professional exports carton
Delivery Time
1-3 days

FL USA type 100A 50mV DC brass Electric current Shunt Resistors with base

Product Description

The main technical parameters:
1, accuracy level: 2 ~ 4000A; 0.5: 5000 ~ 10000A; 1 level.
2, the ambient conditions: -40 ~ +60 ℃, relative humidity ≤ 95% (35 ℃).
3, overload performance: rated current 120%, 2 hours.
4, the voltage drop: 50mV60mV70mV100mV
5, the load under the heat: temperature stability tends to change, the rated current 50A the following does not exceed 80 ℃; rated current 50A or more does not exceed 120 ℃.



Precautions:
(Or copper) and the shunt connection is not allowed to have artificial contact resistance, the sampling point of the secondary voltage can not be sampled from the non-sampling point.

Actual use of the current (long) is recommended not to exceed 80% of rated current.





Shunt is actually a very small resistance of the resistance, when a DC current through, the pressure drop for DC ammeter display
DC ammeter is actually a voltmeter, full-scale value of 75mV
DC ammeter and shunt is supporting the use of;
For example: 100A ammeter supporting shunt resistance of 0.00075 Europe
Namely 100A * 0.00075 Europe = 75mV;
50A ammeter supporting the shunt resistance of 0.0015 Europe
50A * 0.0015 ohms = 75 mV.







FL-21, FL-19, FL-13, FL-21, FL-13, FL-21, FL-
FL-29 type, FL-39 type, Taiwan type, Russian type, Korean type, American type and so on. . .
There are many shunts, but the shape can be customized according to customer requirements. The enclosed shunt is much smaller in shape than an external shunt.



A shunt, also known as a synchronous motor, is required to proportionally supply fuel to multiple branches. Common for the flow of oil. Used to solve the cylinder synchronization, walking motor synchronization, oil lubrication. According to the material can be divided into aluminum and cast iron; according to the structure can be divided into gear and plunger;
