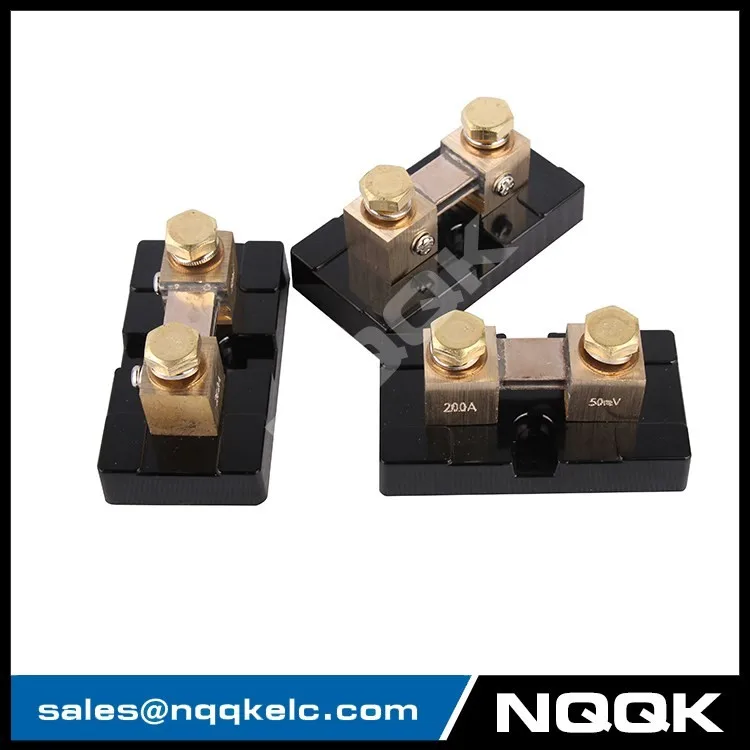

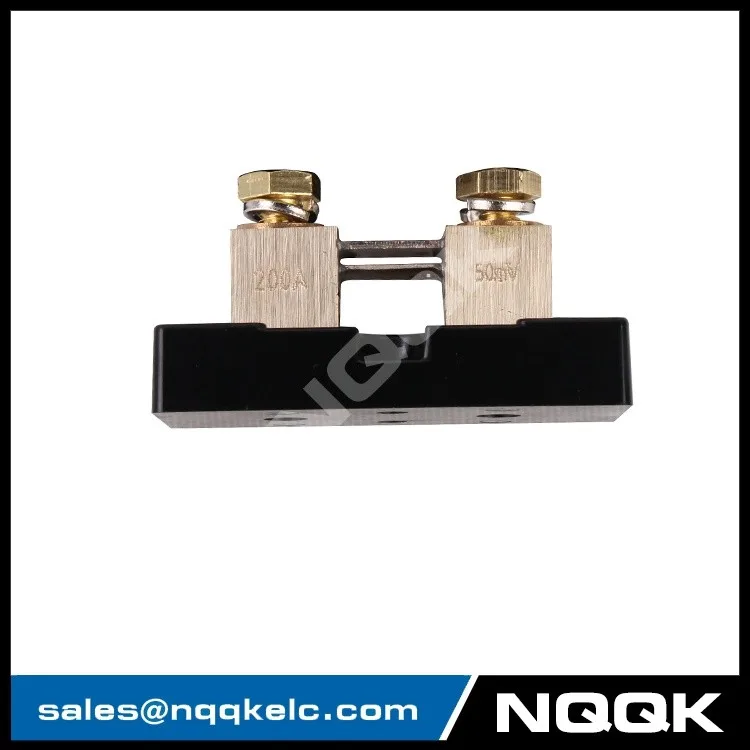

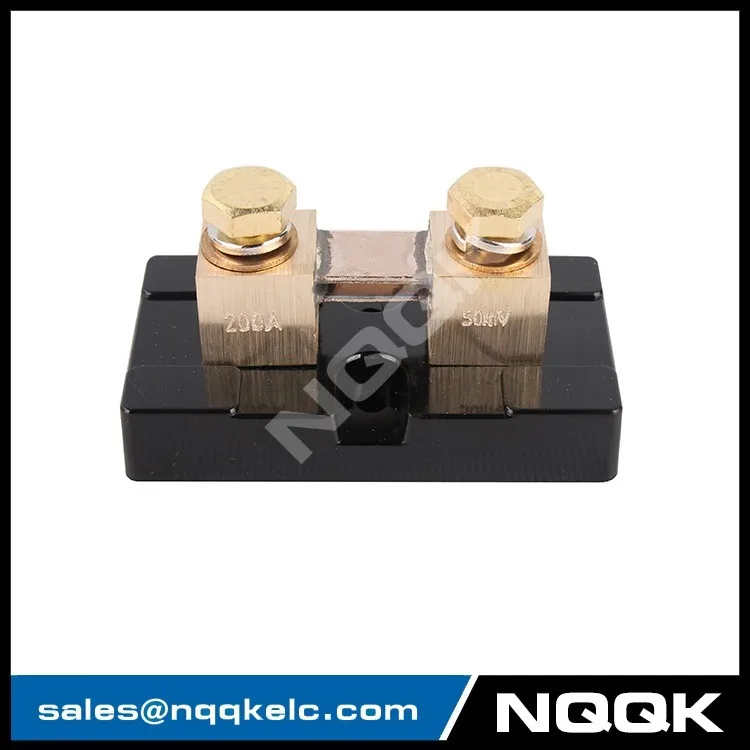

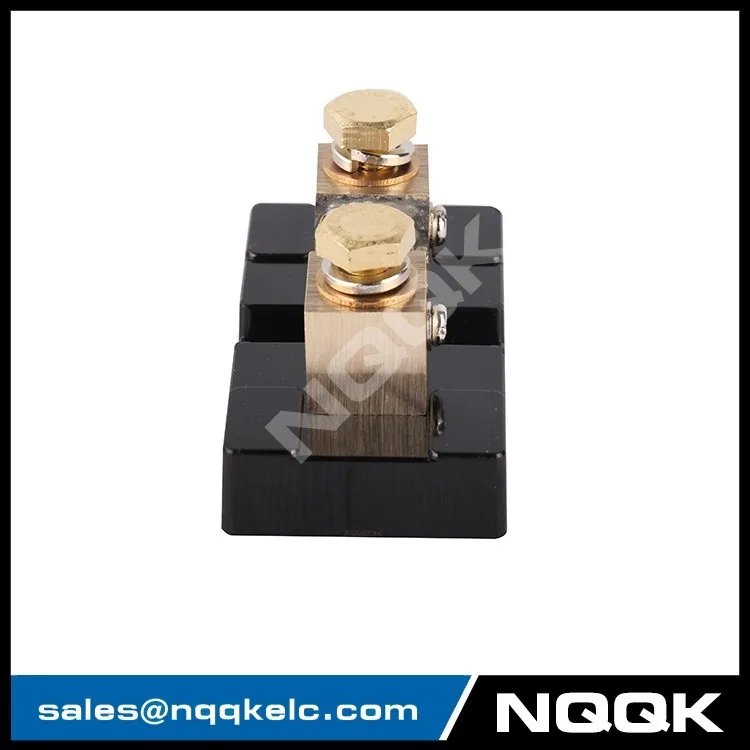

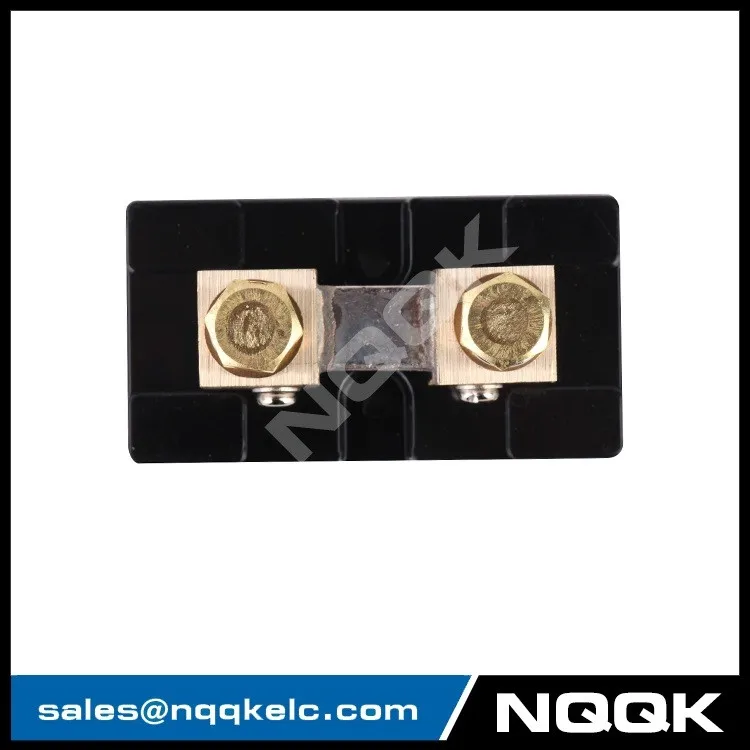

FL USA type 100A 50mV DC brass Electric current Shunt Resistors with base
The main technical parameters: 1, accuracy level: 2 ~ 4000A; 0.5: 5000 ~ 10000A; 1 level. 2, the ambient conditions: -40 ~ +60 ℃, relative humidity ≤ 95% (35 ℃). 3, overload performance: rated current 120%, 2 hours. 4, the voltage drop: 50mV60mV70mV100mV 5, the load under the heat: temperature stability tends to change, the rated current 50A the following does not exceed 80 ℃; rated current 50A or more does not exceed 120 ℃.
Precautions: (Or copper) and the shunt connection is not allowed to have artificial contact resistance, the sampling point of the secondary voltage can not be sampled from the non-sampling point.
Actual use of the current (long) is recommended not to exceed 80% of rated current.
Shunt is actually a very small resistance of the resistance, when a DC current through, the pressure drop for DC ammeter display DC ammeter is actually a voltmeter, full-scale value of 75mV DC ammeter and shunt is supporting the use of; For example: 100A ammeter supporting shunt resistance of 0.00075 Europe Namely 100A * 0.00075 Europe = 75mV; 50A ammeter supporting the shunt resistance of 0.0015 Europe 50A * 0.0015 ohms = 75 mV.
FL-21, FL-19, FL-13, FL-21, FL-13, FL-21, FL- FL-29 type, FL-39 type, Taiwan type, Russian type, Korean type, American type and so on. . . There are many shunts, but the shape can be customized according to customer requirements. The enclosed shunt is much smaller in shape than an external shunt.
A shunt, also known as a synchronous motor, is required to proportionally supply fuel to multiple branches. Common for the flow of oil. Used to solve the cylinder synchronization, walking motor synchronization, oil lubrication. According to the material can be divided into aluminum and cast iron; according to the structure can be divided into gear and plunger;
